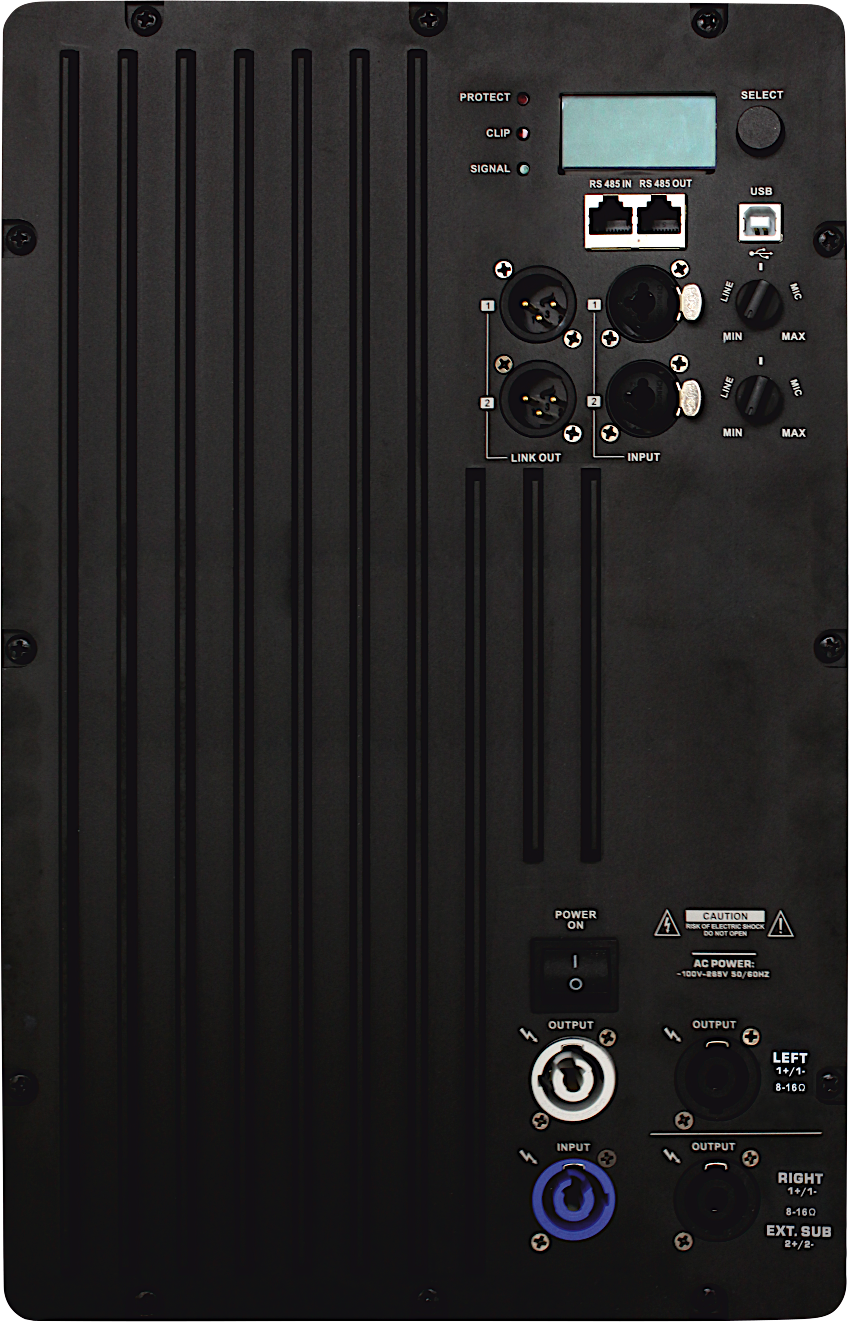

2.1 Amplificator 1x2000W 2×750 4ohm DSP Display

1x2400w/4ohm respectiv 1x1500w/8ohm

2x750w/4ohm respectiv 2x400w/8ohm

Output Circuitry Class D - full bandwith PWM modulator with ultra low distortion

Output Voltage Channel 1 : 160 Vp / 320 Vpp unloaded All other channels: 80 Vp / 160 Vpp unloaded Amplifier Gain Channel 1 on XTP series: 32 dB All other channels: 26 dB
Signal To Noise-Ratio >120 dB (A-weighted, 20 Hz - 20 kHz, 8 Ω load)
THD+N (typical) < 0,05 % (20 Hz - 20 kHz, 8Ω load, 3 dB below rated power)

Frequency Response 20 Hz - 20 kHz (+0/-0.25 dB (8Ω load, 3 dB below rated power) Damping Factor >1000 (8Ω load, 1 kHz and below)

Protection Circuits:Input limiter, short circuit protection, DC protection of output, under & over voltage protection, intelligent mains fuse protection, power stage overload protection, temperature protection of transformers and heat-sinks

Readouts for DSP/Network Protect/Disable (mute), Heatsink temperature, Clip (for each channel), Output voltage (for each channel), Output current (for each channel), SMPS Limit (power supply limiter)

Operation Voltage Universal Mains, 85-268V (dual voltage auto selection)
Control Options Sleep Mode (only +7 V live), Disable outputs (mute), Temperature reduction ON/OFF
Aux. Power for DSP ±15 V (150 mA), +7 V (1 A, delivered by standby power supply)
Dimensions ( W x D x H ) XTP 2.1: 240x375x80mm XTP 1.1: 240x335x80mm XTP 1.0: 240x295x80mm Weight XTP 2.1:5.6kg XTP 1.1: 5.1kg XTP 1.0: 4.6kg
